Order a project in PDF format 399 € Order a project in PDF and DWG format 549 €

You can have project documentation in one of five languages: EN, DE, FR, ES, IT

Delivery time :
3 days
Living spaces 4
Usable (floor) area 156,1m2
Living area 82,5m2
Number of persons 5-6

KLASSIK 163 is a house in the medium size category, for medium width plots. Suitable for two-storey surrounding buildings The internal space in this house will meet the housing needs for a 5-6 member family. The living room and kitchen form a single large space. Suitable for flat and slightly sloped terrain. The house has a fireplace which provides heat and serves an irreplaceable aesthetic function.

Basic design

View - KLASSIK 163
Tech. parameters
Number of persons: 5-6
Living spaces: 4
Built-up area: 95m2
Enclosed space: 601m3
Usable (floor) area: 156,1m2
Living area: 82,5m2
Ridge height ±0,0: 7,19m
Orientation of the main entrance: S,SZ,Z

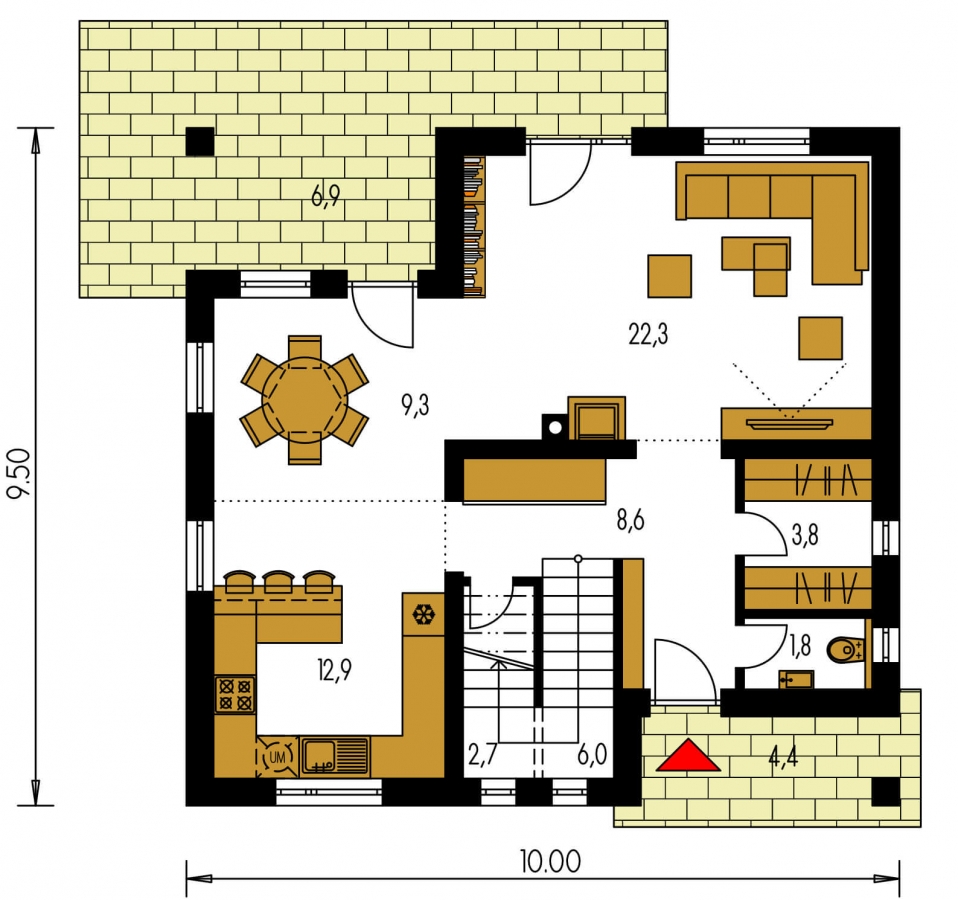

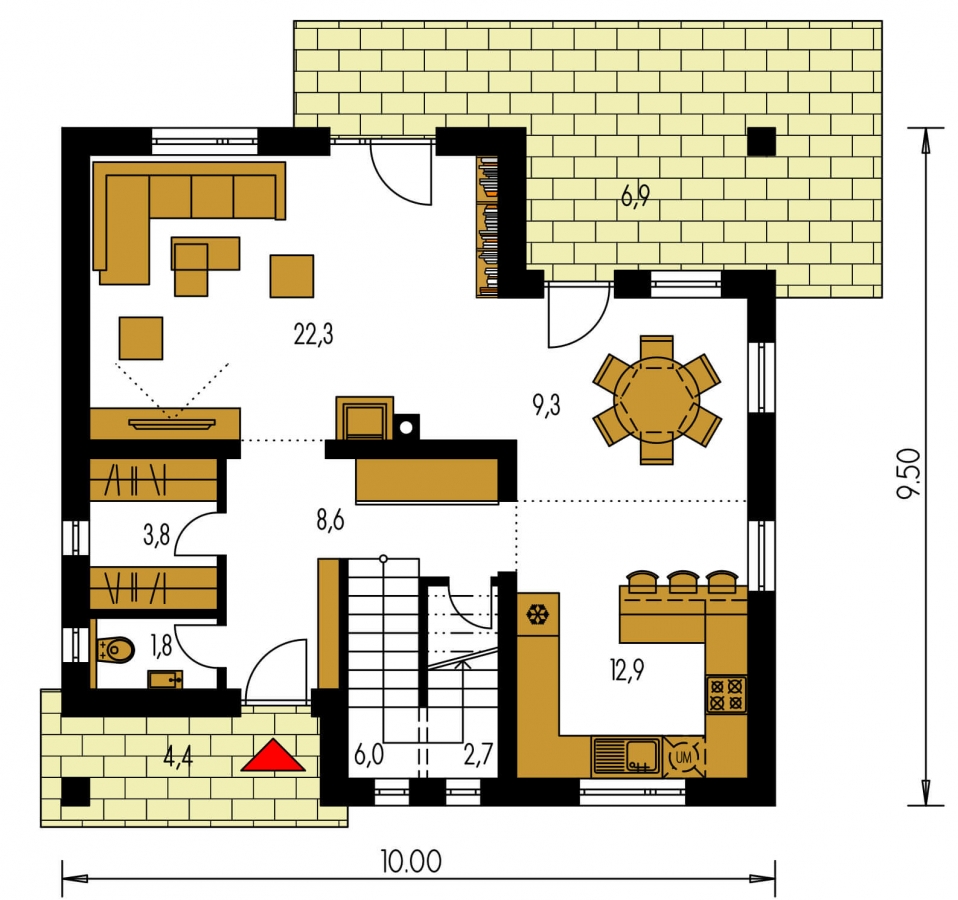

Ground floor usable (floor) area: 78,7m2

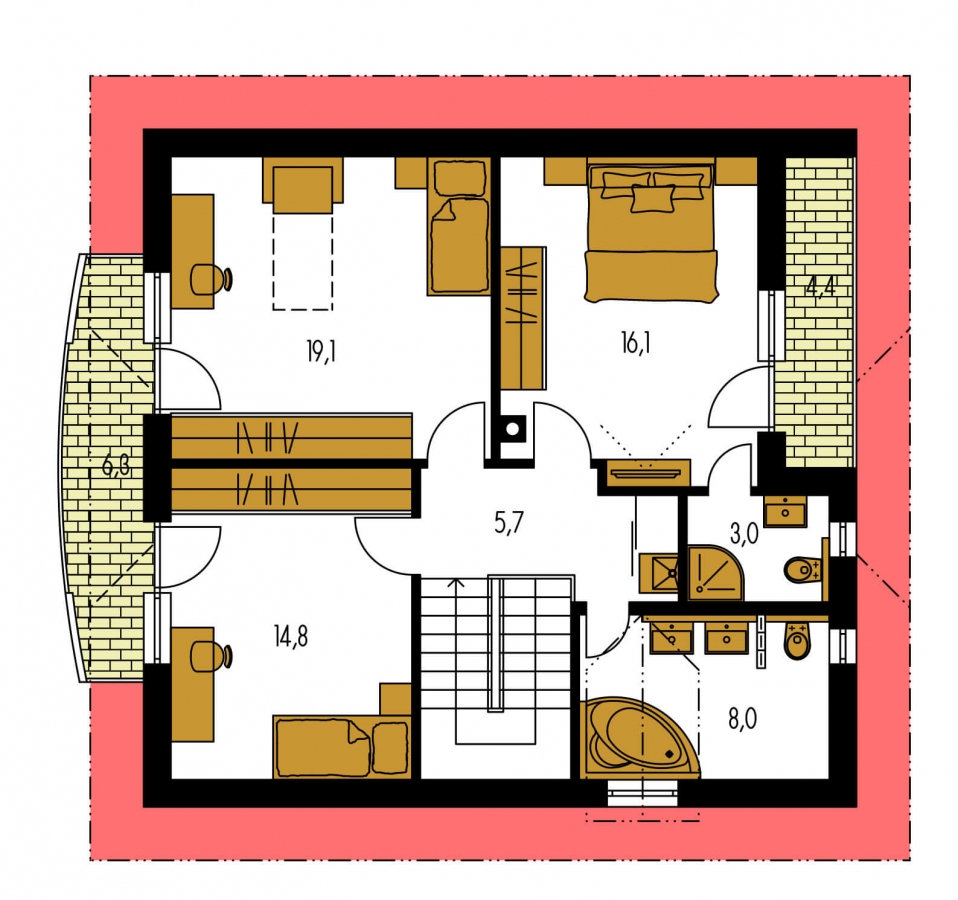

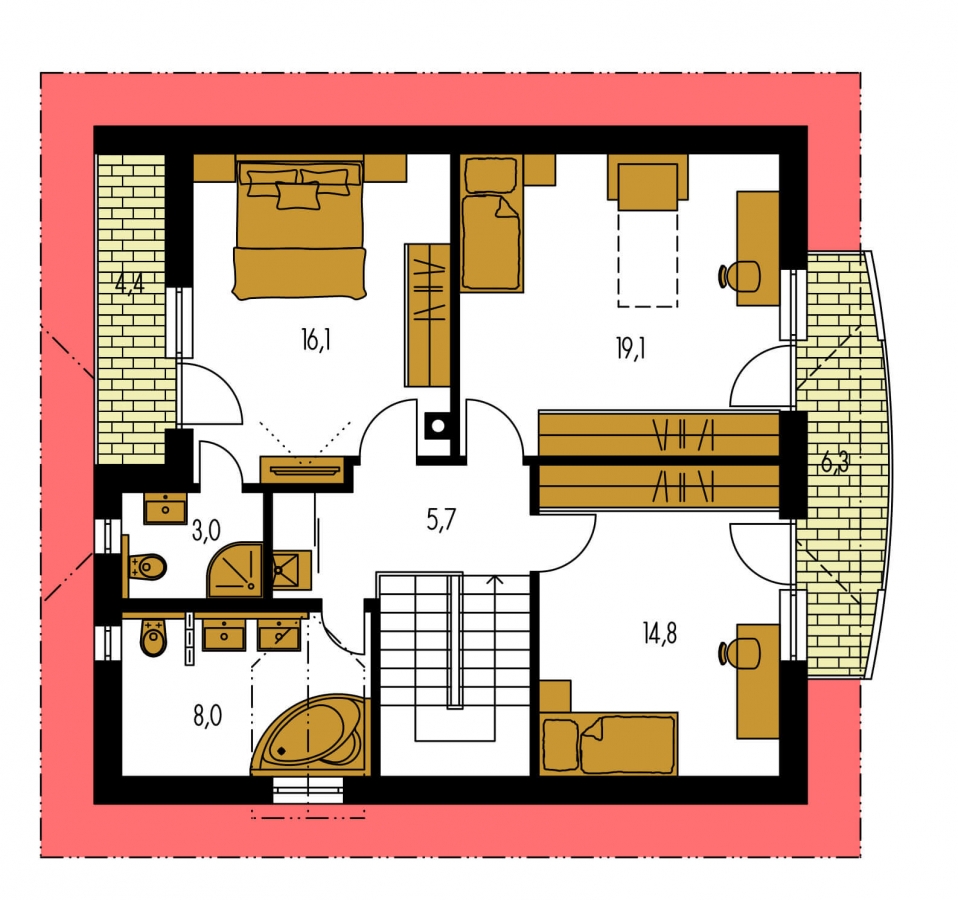

Second-storey usable (floor) area: 77,4m2
Roof pitch: 30 °
