Order a project in PDF format 399 € Order a project in PDF and DWG format 549 €

You can have project documentation in one of five languages: EN, DE, FR, ES, IT

Delivery time :
3 days
Living spaces 5
Usable (floor) area 155m2
Living area 96,4m2
Number of persons 5-6

TENUITY 500 is a house in the medium size category, for medium width plots. Suitable for two-storey surrounding buildings The internal space in this house will meet the housing needs for a 5-6 member family. The living room and kitchen form a single large space. Suitable for flat and slightly sloped terrain. The house has a fireplace which provides heat and serves an irreplaceable aesthetic function. Thanks to the room on the ground floor, you can avoid the need to take the stairs. Suitable for row construction thanks to its shape and layout.

Basic design

View - TENUITY 500
Tech. parameters
Number of persons: 5-6
Living spaces: 5
Built-up area: 96,9m2
Enclosed space: 695,7m3
Usable (floor) area: 155m2
Living area: 96,4m2
Ridge height ±0,0: 8,28m
Orientation of the main entrance: S, SZ

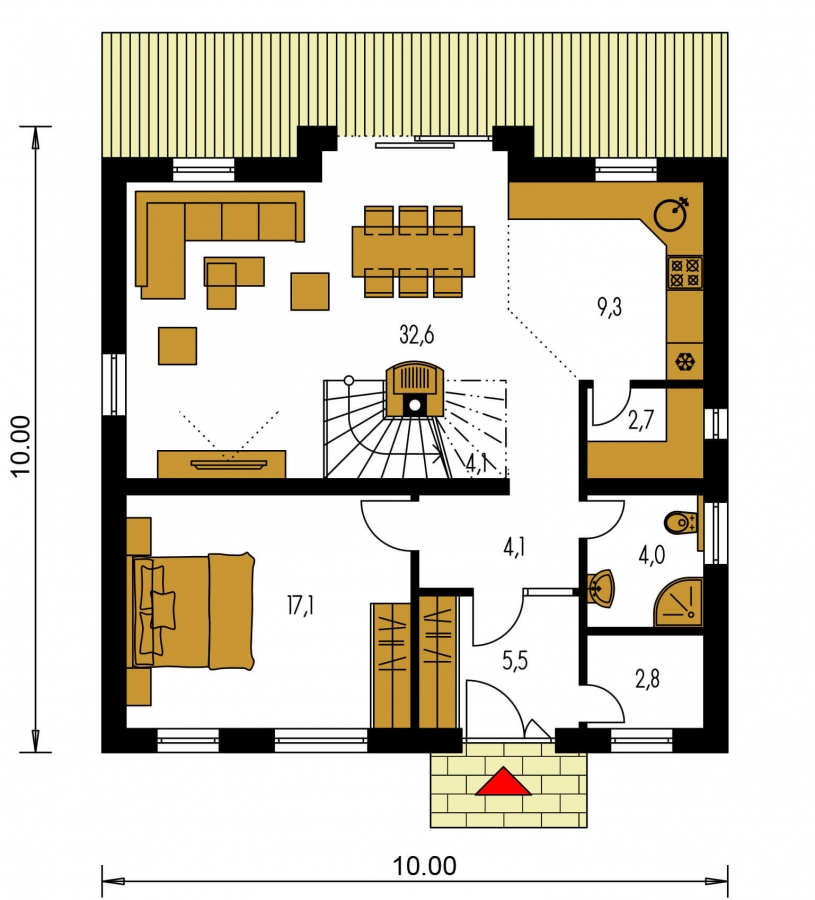

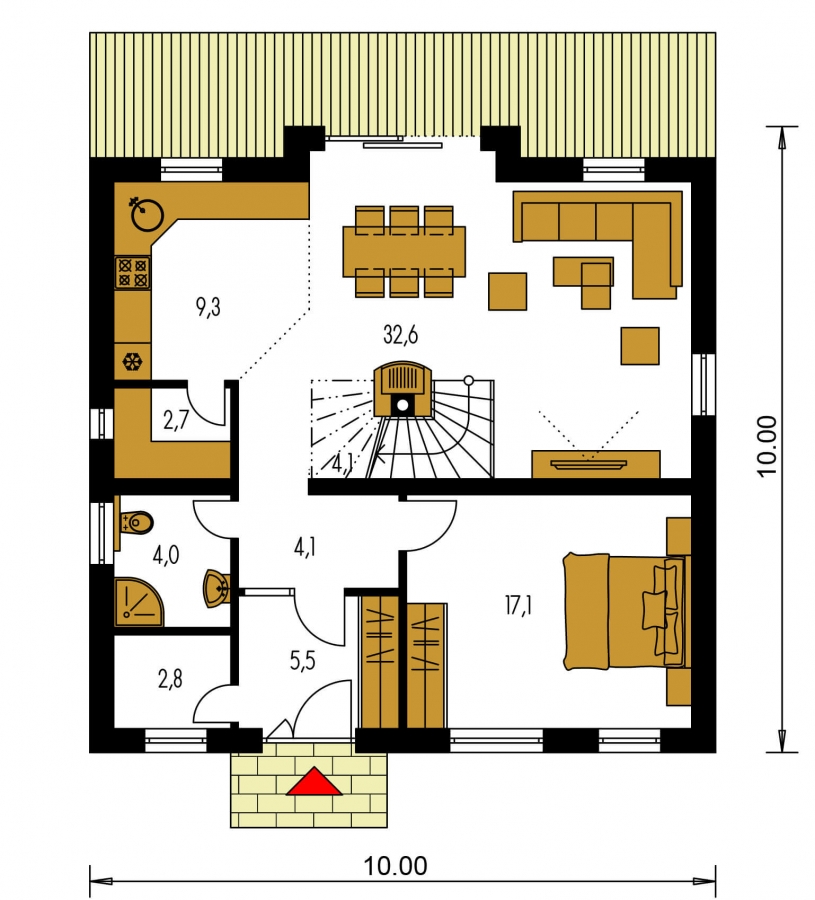

Ground floor usable (floor) area: 82,2m2

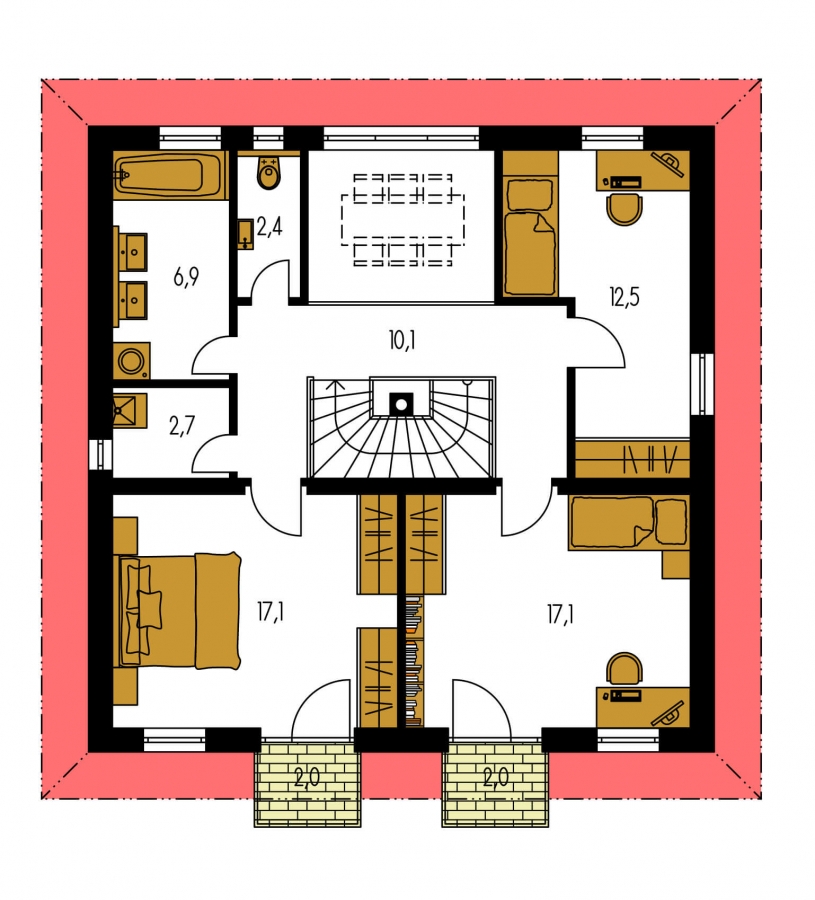

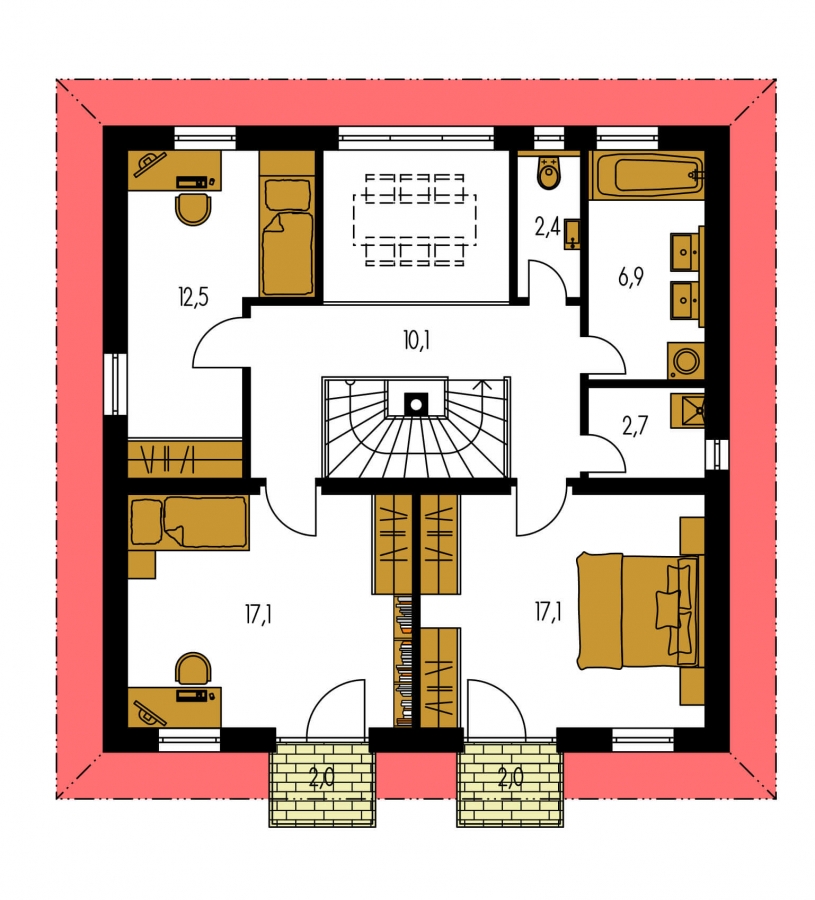

Second-storey usable (floor) area: 72,8m2
Roof pitch: 20 °

The TENUITY 500 house project is classified in the following categories:

Modern houses

This family house belongs to the category of Modern family houses. But it is up to you whether to use modern materials, various types of façade cladding or modern elements in interiors. Ultimately, the owner will be led to a house in the MODERN category with his/her approach to construction and the use of modern technologies, of which there are many at present.
