You can have project documentation in one of five languages: EN, DE, FR, ES, IT
Living spaces | 4 |
Usable (floor) area | 126,5m2 |
Living area | 67,6m2 |
Number of persons | 4-5 |
KLASSIK 132 is a house in the medium size category, for medium width plots. Suitable for two-storey surrounding buildings The internal space in this house will meet the housing needs for a 4-5 member family. The living room and kitchen form a single large space. Suitable for flat and slightly sloped terrain. The house includes a spacious garage.
Tech. parameters | |
---|---|
Number of persons: | 4-5 |
Living spaces: | 4 |
Built-up area: | 97,7m2 |
Enclosed space: | 565,7m3 |
Usable (floor) area: | 126,5m2 |
Living area: | 67,6m2 |
Ridge height ±0,0: | 7,58m |
Orientation of the main entrance: | SV,S,SZ,Z |

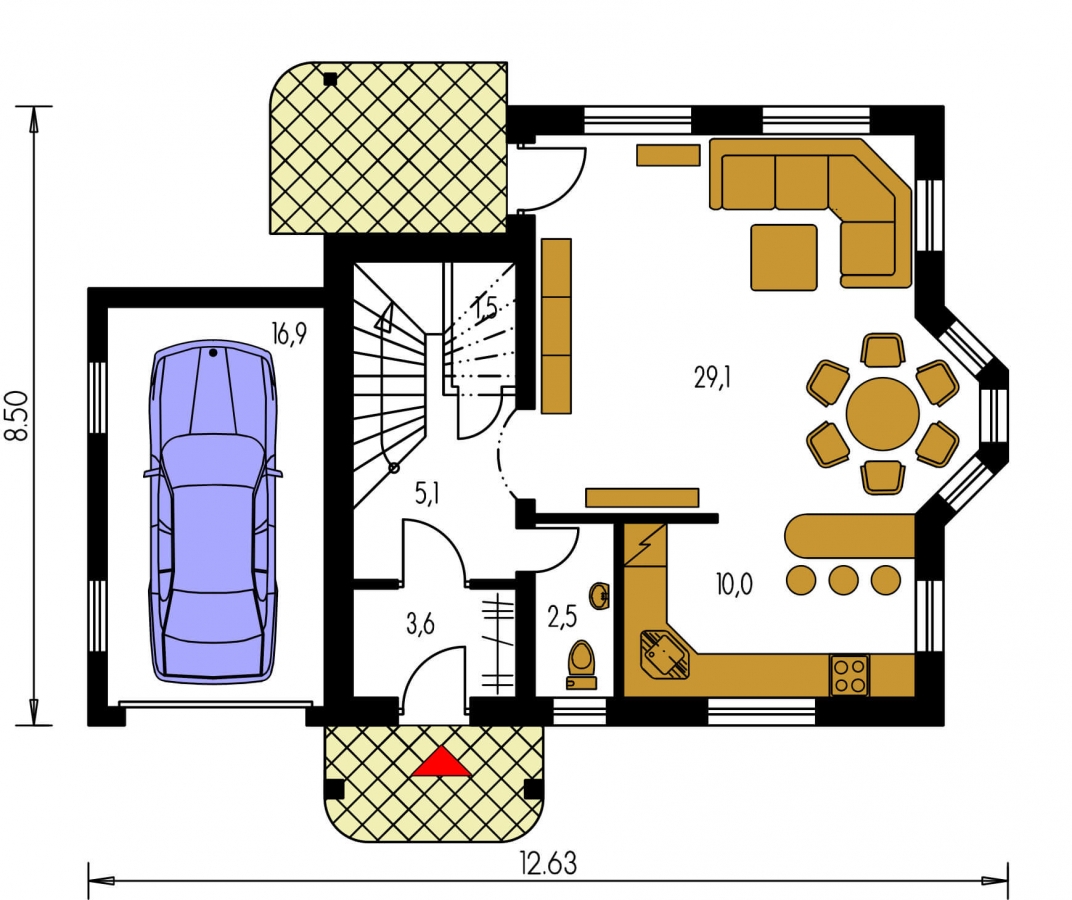

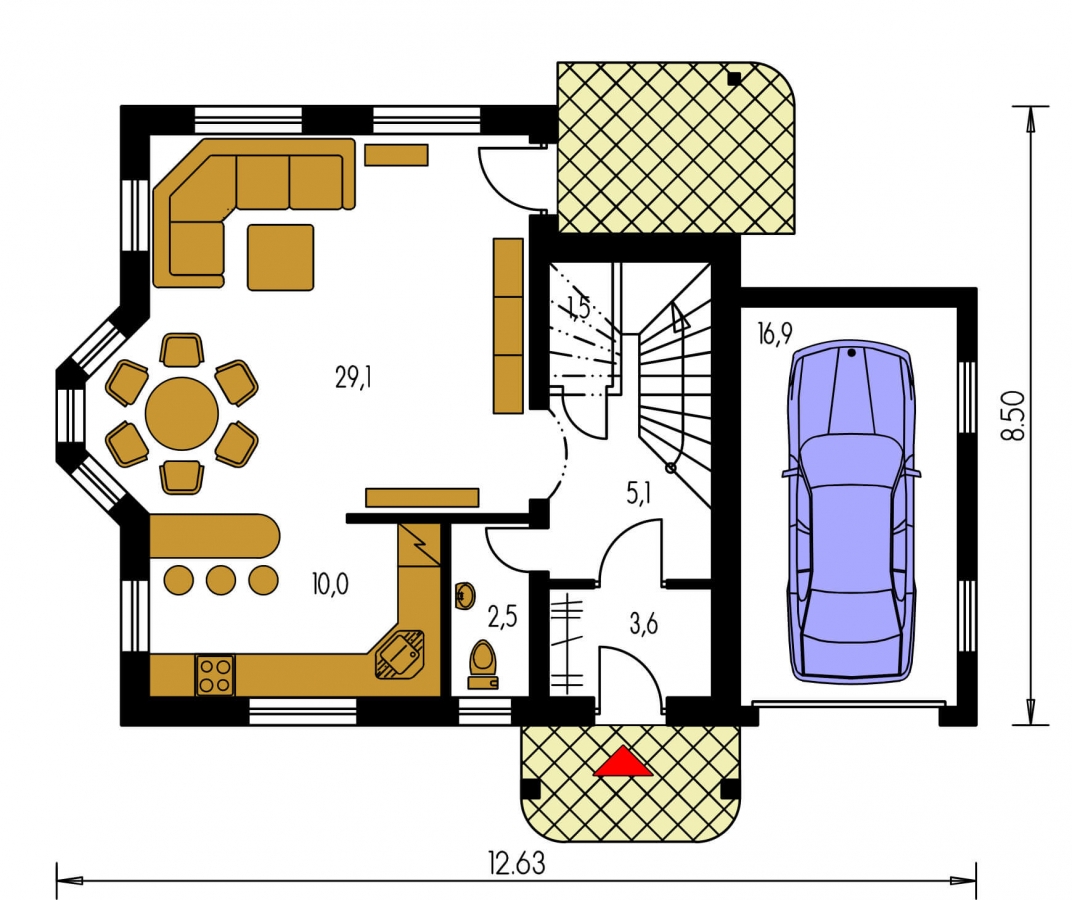

Ground floor usable (floor) area: | 68,3m2 |

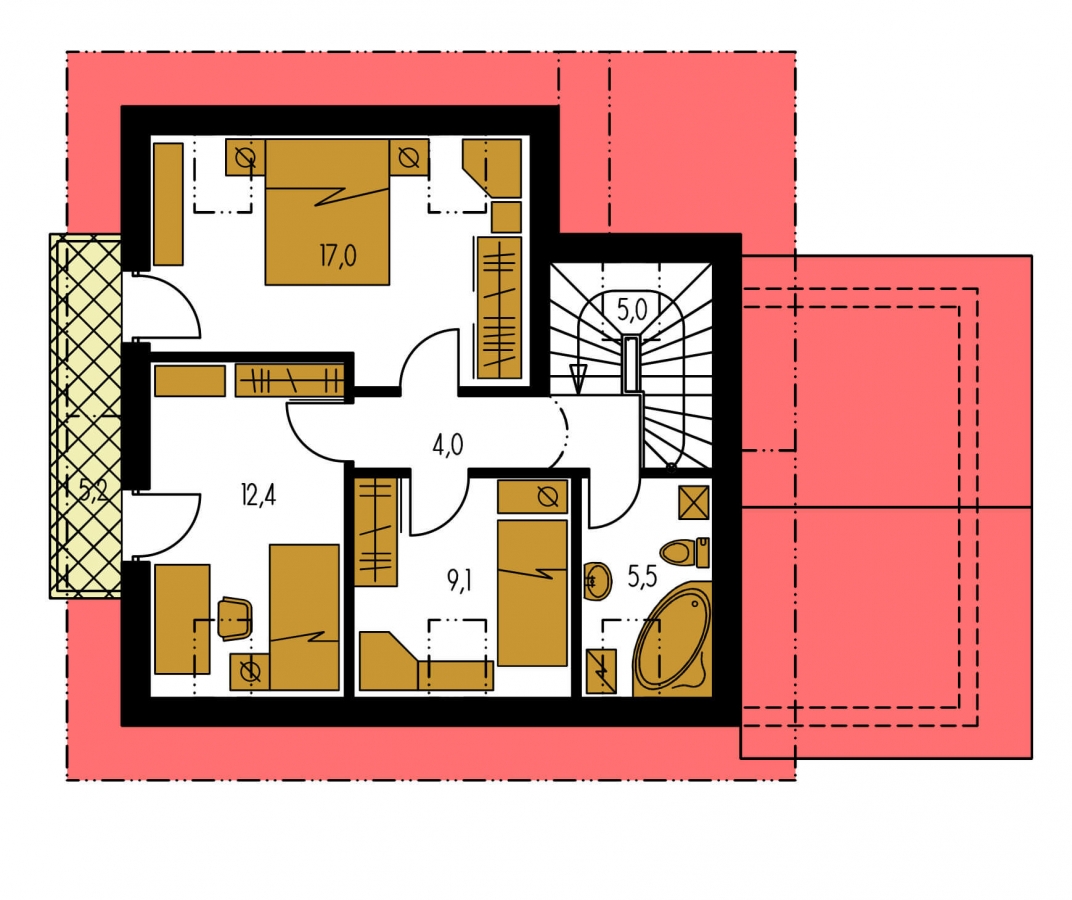

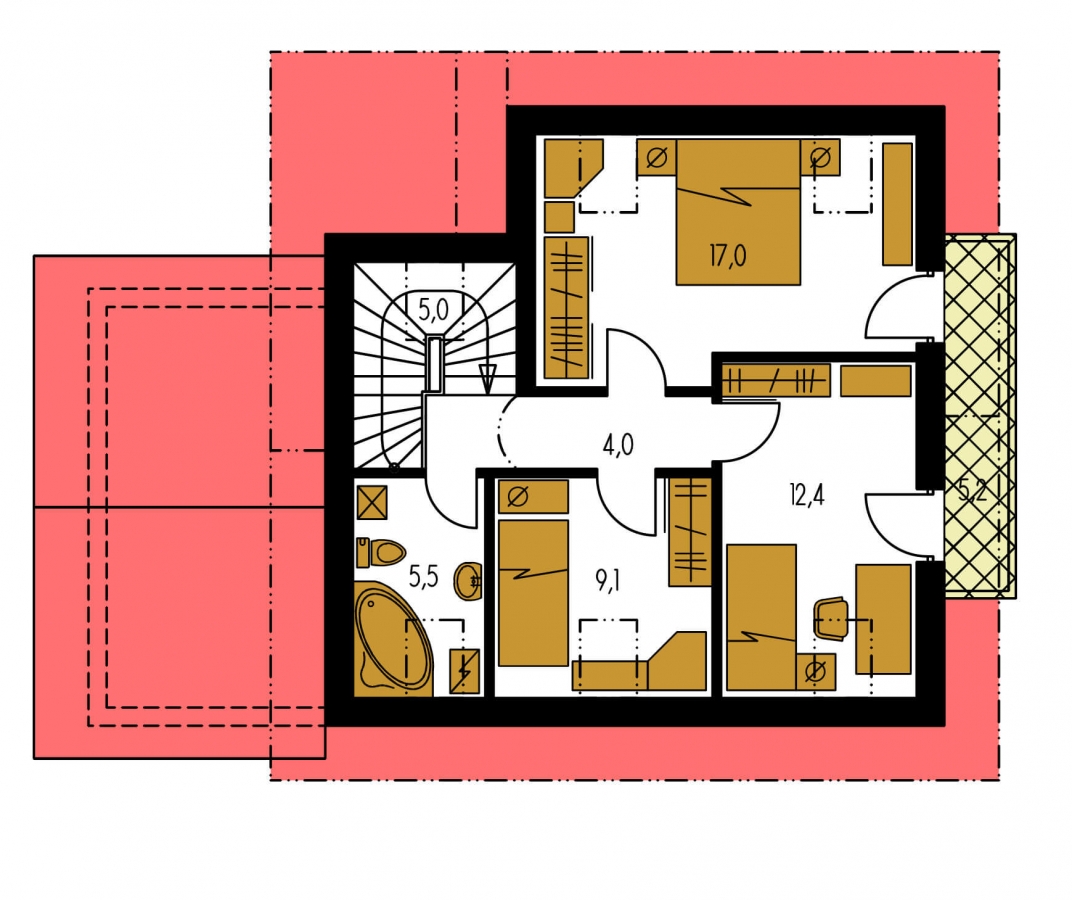

Second-storey usable (floor) area: | 58,2m2 |
Roof pitch: | 40 ° |
You can create a semi-detached family house by connecting two suitable family house projects. One of them is mirrored to the other. Houses may be single or multi-storey, but they can only be connected via the walls without windows. Any windows in the wall may be eliminated or moved to another side.
